Deep Outdoor Illumination Estimation: A CNN-based Approach from Single LDR Images

Table of Contents

1. Introduction

Recovering accurate scene illumination from a single image is a fundamental and ill-posed problem in computer vision, critical for applications like augmented reality (AR), image editing, and scene understanding. The paper "Deep Outdoor Illumination Estimation" addresses this challenge specifically for outdoor environments. Traditional methods rely on explicit cues like shadows or require good geometry estimates, which are often unreliable. This work proposes a data-driven, end-to-end solution using Convolutional Neural Networks (CNNs) to regress high-dynamic range (HDR) outdoor illumination parameters directly from a single low-dynamic range (LDR) image.

2. Methodology

The core innovation lies not just in the CNN architecture, but in the clever pipeline for creating a large-scale training dataset where ground truth HDR illumination is scarce.

2.1. Dataset Creation & Sky Model Fitting

The authors circumvent the lack of paired LDR-HDR data by leveraging a large dataset of outdoor panoramas. Instead of using the panoramas directly (which are LDR), they fit a low-dimensional, physically-based sky model—the Hošek-Wilkie model—to the visible sky regions in each panorama. This process compresses the complex spherical illumination into a compact set of parameters (e.g., sun position, atmospheric turbidity). Cropped, limited field-of-view images are extracted from the panoramas, creating a massive dataset of (LDR image, sky parameters) pairs for training.

2.2. CNN Architecture & Training

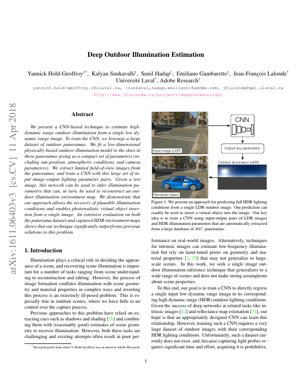

A CNN is trained to regress from an input LDR image to the parameters of the Hošek-Wilkie sky model. At test time, the network predicts these parameters for a novel image, which are then used to reconstruct a full HDR environment map, enabling tasks like photorealistic virtual object insertion (as shown in Figure 1 of the PDF).

3. Technical Details & Mathematical Formulation

The Hošek-Wilkie sky model is central. It describes the radiance $L(\gamma, \theta)$ at a point in the sky, given the angular distance from the sun $\gamma$ and zenith angle $\theta$, through a series of empirical terms:

$L(\gamma, \theta) = L_{zenith}(\theta) \cdot \phi(\gamma) \cdot f(\chi, c)$

where $L_{zenith}$ is the zenith luminance distribution, $\phi$ is the scattering function, and $f$ accounts for darkening near the sun. The CNN learns to predict the model parameters (like sun position $\theta_s, \phi_s$, turbidity $T$, etc.) that minimize the difference between the model's output and the observed panorama sky. The loss function during training is typically a combination of L1/L2 loss on the parameter vector and a perceptual loss on rendered images using the predicted lighting.

4. Experimental Results & Evaluation

4.1. Quantitative Evaluation

The paper demonstrates superior performance compared to previous methods on both the panorama dataset and a separate set of captured HDR environment maps. Metrics likely include angular error in predicted sun position, RMSE on sky model parameters, and image-based metrics (like SSIM) on renderings of objects lit with the predicted vs. ground truth illumination.

4.2. Qualitative Results & Virtual Object Insertion

The most compelling evidence is visual. The method produces plausible HDR skydomes from diverse single LDR inputs. When used to illuminate virtual objects inserted into the original photo, the results show consistent shading, shadows, and specular highlights that match the scene, significantly outperforming prior techniques which often yield flat or inconsistent lighting.

5. Analysis Framework: Core Insight & Logical Flow

Core Insight: The paper's genius is a pragmatic workaround for the "Big Data" problem in vision. Instead of the impossible task of collecting millions of real-world (LDR, HDR probe) pairs, they synthesize the supervision by marrying a large but imperfect LDR panorama dataset with a compact, differentiable physical sky model. The CNN isn't learning to output arbitrary HDR pixels; it's learning to be a robust "inverse renderer" for a specific, well-defined physical model. This is a more constrained, learnable task.

Logical Flow: The pipeline is elegantly linear: 1) Data Engine: Panorama -> Fit Model -> Extract Crop -> (Image, Params) Pair. 2) Learning: Train CNN on millions of such pairs. 3) Inference: New Image -> CNN -> Params -> Hošek-Wilkie Model -> Full HDR Map. This flow cleverly uses the physical model as both a data compressor for training and a renderer for application. It echoes the success of similar "model-based deep learning" approaches seen in other domains, like using differentiable physics simulators in robotics.

6. Strengths, Flaws & Actionable Insights

Strengths:

• Scalability & Practicality: The dataset creation method is brilliant and scalable, turning a readily available resource (panoramas) into high-quality training data.
• Physical Plausibility: By regressing to parameters of a physical model, the outputs are inherently more plausible and editable than a "black box" HDR output.
• Strong Results: The clear outperformance of previous methods on real-world tasks like object insertion is its ultimate validation.

Flaws & Limitations:

• Model Dependence: The method is fundamentally limited by the expressiveness of the Hošek-Wilkie model. It cannot recover illumination features the model cannot represent (e.g., complex cloud formations, distinct light sources like street lamps).
• Sky Dependency: It requires a visible sky region in the input image. Performance degrades or fails for ground-level or indoor-outdoor scenes with limited sky view.
• Generalization to Non-Sky Lighting: As noted in the PDF, the focus is on skylight. The approach does not model secondary bounces or ground reflectance, which can be significant.

Actionable Insights:

1. For Practitioners (AR/VR): This is a near-production-ready solution for outdoor AR object insertion. The pipeline is relatively straightforward to implement, and the reliance on a standard sky model makes it compatible with common rendering engines (Unity, Unreal).
2. For Researchers: The core idea—using a simplified, differentiable forward model to generate training data and structure network output—is highly portable. Think: estimating material parameters with a differentiable renderer like Mitsuba, or camera parameters with a pinhole model. This is the paper's most lasting contribution.
3. Next Steps: The obvious evolution is to hybridize this approach. Combine the parametric sky model with a small residual CNN that predicts an "error map" or additional non-parametric components to handle clouds and complex urban lighting, moving beyond the model's limitations while retaining its benefits.

7. Future Applications & Research Directions

• Augmented Reality: Real-time, on-device version for mobile AR, enabling believable integration of digital content into any outdoor photo or video stream.
• Photography & Post-Production: Automated tools for professional photographers and filmmakers to match lighting between shots or insert CGI elements seamlessly.
• Autonomous Systems & Robotics: Providing a richer understanding of scene lighting for improved perception, especially for predicting shadows and glare.
• Neural Rendering & Inverse Graphics: Serving as a robust lighting estimation module within larger "scene decomposition" pipelines that also estimate geometry and materials, akin to extensions of the work from MIT CSAIL on intrinsic image decomposition.
• Climate & Environmental Modeling: Analyzing large corpora of historical outdoor images to estimate atmospheric conditions (turbidity, aerosol levels) over time.

8. References

1. Hold-Geoffroy, Y., Sunkavalli, K., Hadap, S., Gambaretto, E., & Lalonde, J. F. (2018). Deep Outdoor Illumination Estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR).
2. Hošek, L., & Wilkie, A. (2012). An Analytic Model for Full Spectral Sky-Dome Radiance. ACM Transactions on Graphics (TOG), 31(4), 95.
3. Zhu, J. Y., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. In Proceedings of the IEEE International Conference on Computer Vision (ICCV). (CycleGAN, as an example of learning without paired data).
4. Barron, J. T., & Malik, J. (2015). Shape, Illumination, and Reflectance from Shading. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), 37(8), 1670-1687. (Example of traditional intrinsic image methods).
5. MIT Computer Science & Artificial Intelligence Laboratory (CSAIL). Intrinsic Images in the Wild. http://opensurfaces.cs.cornell.edu/intrinsic/ (Example of related research and datasets).
