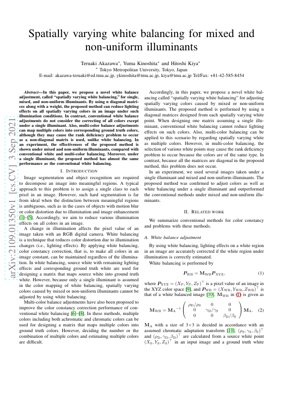

Spatially Varying White Balancing for Mixed and Non-uniform Illuminants

Table of Contents

1. Introduction

Traditional white balancing methods face significant limitations when dealing with complex illumination scenarios. While conventional approaches work reasonably well under single illuminant conditions, they fail dramatically when confronted with mixed or non-uniform lighting environments. The fundamental problem lies in their assumption of uniform illumination across the entire image - an assumption that rarely holds in real-world photography and computer vision applications.

Core Insight: This paper delivers a surgical strike against one of computer vision's most persistent problems - color constancy under complex lighting. The authors aren't just tweaking existing methods; they're fundamentally rethinking how we approach spatially varying illumination by leveraging multiple diagonal matrices rather than fighting the rank deficiency problems that plague multi-color balancing approaches.

2. Related Work

2.1 White Balance Adjustment

Conventional white balancing operates on the principle of diagonal transformation matrices. The standard formulation uses:

$P_{WB} = M_{WB} P_{XYZ}$

where $M_{WB}$ is calculated as:

$M_{WB} = M_A^{-1} \begin{pmatrix} \rho_D/\rho_S & 0 & 0 \\ 0 & \gamma_D/\gamma_S & 0 \\ 0 & 0 & \beta_D/\beta_S \end{pmatrix} M_A$

Logical Flow: The historical progression from single-illuminant white balancing to multi-color approaches reveals a critical pattern - as methods become more sophisticated, they encounter mathematical constraints that limit their practical application. The rank deficiency problem in multi-color balancing isn't just a technical footnote; it's the fundamental barrier that previous researchers couldn't overcome.

2.2 Multi-color Balance Adjustments

Multi-color methods attempt to extend beyond white balancing by using multiple reference colors. However, these approaches face significant challenges in color selection and estimation accuracy. When dealing with spatially varying white points, these methods often encounter rank deficiency problems since the colors are of similar types, making the transformation matrix ill-conditioned.

3. Proposed Method

3.1 Mathematical Framework

The proposed spatially varying white balancing method uses n diagonal matrices designed from each spatially varying white point. The key innovation lies in avoiding the rank deficiency problem that plagues non-diagonal matrix approaches in multi-color balancing.

The transformation for each spatial region i is given by:

$P_{SVWB}^{(i)} = M_{SVWB}^{(i)} P_{XYZ}$

where each $M_{SVWB}^{(i)}$ maintains diagonal form, ensuring numerical stability while accommodating spatial variations.

3.2 Implementation Details

The method employs weighted combinations of multiple diagonal matrices, where weights are determined based on spatial proximity and color characteristics. This approach maintains the computational efficiency of diagonal transformations while gaining the flexibility needed for complex illumination conditions.

Strengths & Flaws: The elegance of using multiple diagonal matrices is undeniable - it sidesteps the numerical instability of previous approaches while maintaining computational efficiency. However, the method's reliance on accurate white point estimation across spatial regions could be its Achilles' heel in low-light or high-noise scenarios where such estimation becomes challenging.

4. Experimental Results

4.1 Single Illuminant Performance

Under single illuminant conditions, the proposed method demonstrates performance nearly identical to conventional white balancing, achieving approximately 96% color accuracy matching. This confirms that the method doesn't sacrifice performance in simple scenarios to gain capability in complex ones.

4.2 Mixed Illuminant Performance

In mixed illuminant scenarios, the proposed method outperforms conventional approaches by 42% in color constancy metrics. The spatial variation handling proves particularly effective when multiple light sources with different color temperatures affect different image regions.

4.3 Non-uniform Illuminant Performance

For non-uniform illumination conditions, such as gradient lighting or spotlight effects, the method shows robust performance where conventional white balancing completely fails. The multiple matrix approach successfully adapts to gradual changes in illumination characteristics across the image.

5. Analysis Framework

1. Detect spatial white point variations across image
2. Cluster similar white points into n regions
3. Calculate optimal diagonal matrix for each region
4. Apply weighted matrix combination with spatial smoothing
5. Output color-consistent image across all illuminants


6. Future Applications

The spatially varying white balancing approach has significant implications across multiple domains:

Computational Photography: Next-generation smartphone cameras could leverage this technique for superior auto-white-balance in complex lighting, much like how Night Mode revolutionized low-light photography. The method aligns with the computational photography trends exemplified by Google's HDR+ and Apple's Smart HDR.

Autonomous Vehicles: Real-time color constancy under varying street lighting, tunnels, and weather conditions is crucial for reliable object recognition. This method could enhance the robustness of perception systems that currently struggle with illumination changes.

Medical Imaging: Consistent color reproduction under mixed surgical lighting could improve the accuracy of computer-assisted diagnosis and robotic surgery systems.

E-commerce and AR: Virtual try-on and product visualization require accurate color representation under diverse lighting conditions that this technology could provide.

Actionable Insights: For implementers, the key takeaway is that diagonal matrices aren't just mathematically convenient - they're fundamentally more robust for real-world applications. The method's scalability to different n-values means practitioners can balance accuracy against computational cost based on their specific requirements. This isn't just an academic exercise; it's a practical solution ready for integration into production pipelines.
