Quantum Illumination: Exponential Enhancement in Detection via Entanglement

1. Introduction & Overview

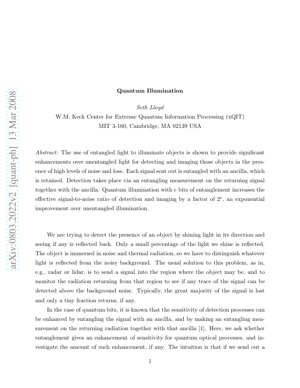

This document analyzes the seminal work "Quantum Illumination" by Seth Lloyd (arXiv:0803.2022v2). The paper introduces a revolutionary quantum sensing protocol that leverages entanglement between a signal photon and a retained ancilla photon to dramatically enhance the detection and imaging of objects immersed in high levels of noise and loss. The core claim is an exponential improvement in the effective signal-to-noise ratio (SNR) compared to classical, unentangled illumination techniques like conventional radar or lidar.

The fundamental challenge addressed is detecting a weakly reflecting object when the vast majority of the probing signal is lost and the environment is dominated by thermal background noise. Quantum Illumination provides a counter-intuitive solution: even though the entanglement between signal and ancilla is completely destroyed by the noisy channel, the initial correlation enables a superior joint measurement strategy upon the signal's return.

2. Core Concepts & Methodology

2.1 The Quantum Illumination Protocol

The protocol involves three key stages:

State Preparation: Generate an entangled pair of photons (e.g., via spontaneous parametric down-conversion). One photon (the signal) is sent towards a target region. The other photon (the ancilla) is retained locally in a quantum memory.
Propagation & Interaction: The signal photon interacts with the target region. If an object is present, it may be reflected with a very low probability $\eta$ (reflectivity). Most likely, it is lost. The channel also introduces significant thermal noise with an average photon number $b$ per mode.
Joint Measurement: Any radiation returning from the target region is combined with the retained ancilla photon in an entangling measurement (e.g., a Bell-state measurement or photon coincidence detection). This measurement is designed to be sensitive to the original quantum correlations.

2.2 Signal-Ancilla Entanglement

The initial entanglement, often in a two-mode squeezed vacuum state or a Bell state for single photons, creates non-classical correlations. The ancilla acts as a "quantum fingerprint" or reference for the signal. Crucially, the enhancement persists even when $\eta \ll 1$ and $b \gg \eta$, conditions where classical strategies fail and the signal-idler entanglement is irrevocably broken by the channel—a phenomenon highlighting the robustness of quantum correlations for sensing.

3. Technical Analysis & Mathematical Framework

3.1 System Dynamics & Noise Model

The interaction is modeled as the signal passing through a beam splitter with reflectivity $\eta$ (representing object presence/absence), followed by mixing with a thermal background. The absence of an object corresponds to $\eta = 0$. The thermal state for $d$ modes, under the low-noise assumption $db \ll 1$, is approximated as:

$$\rho_0 = (1 - db)|vac\rangle\langle vac| + \frac{b}{d}\sum_{k=1}^{d}|k\rangle\langle k|$$

where $|vac\rangle$ is the vacuum state and $|k\rangle$ represents a single photon in mode $k$.

3.2 Detection Probability Analysis

For the unentangled (classical) case, sending a single photon $\rho$ leads to two possible output states. For the entangled case, the returning signal and the ancilla are in a joint state. The probability of error in distinguishing "object present" from "object absent" is analyzed using quantum hypothesis testing (e.g., the Helstrom bound). The key finding is that the error probability for the quantum-illumination protocol decays exponentially faster with the number of signal copies $M$ than any possible classical protocol using the same transmitted energy.

4. Results & Performance Enhancement

Key Performance Metric

Effective SNR Enhancement Factor: $2e$ per ebit of entanglement used.

This represents an exponential improvement over classical coherent-state illumination, where SNR scales linearly with transmitted energy.

4.1 Signal-to-Noise Ratio (SNR) Improvement

The paper demonstrates that for a given number of transmitted photons $N_S$, Quantum Illumination achieves an SNR that is superior by a factor proportional to $\exp(N_S)$ in the relevant regime of high loss and noise. This is the "exponential advantage."

4.2 Exponential Advantage with Entanglement

The enhancement grows exponentially with the number of entangled bits (ebits) shared between signal and ancilla systems. This is a fundamental resource advantage: entanglement acts as a catalyst for extracting information from a supremely noisy environment where classical information is drowned out.

5. Critical Analysis & Expert Interpretation

Core Insight: Lloyd's paper isn't just about a better sensor; it's a foundational rebuttal to the naive notion that quantum advantages are fragile. Quantum Illumination thrives precisely where entanglement dies—in extreme noise and loss. This turns conventional wisdom on its head and identifies a new operational regime for quantum technologies: not pristine labs, but the messy, lossy real world. The core value isn't the entanglement surviving, but the information-theoretic shadow it casts, enabling superior detection statistics.

Logical Flow: The argument is elegantly minimal. Start with the hardest sensing problem (low reflectivity, high noise). Show that classical strategies hit a fundamental SNR wall. Introduce an entangled resource, follow it through a completely destructive channel, and then perform a clever joint measurement on what's left. The result is a provable, exponential separation in performance. The logic is airtight within its model, drawing directly from quantum detection theory as seen in works like Helstrom's and Holevo's.

Strengths & Flaws: The strength is its theoretical clarity and the surprising robustness of the advantage. It laid the blueprint for quantum radar and sensing. However, the 2008 treatment is idealized. Major flaws in the path to practicality include: the requirement for near-perfect quantum memory to store ancillas (still a major engineering hurdle), the need for extremely low-noise single-photon detectors, and the assumption of a known, stationary background. Later work, like that of Shapiro and Lloyd themselves, and experimental groups at MIT and elsewhere, has shown that the advantage can be demonstrated but scaling to field-deployable systems is enormously challenging. The "exponential" gain is in a specific resource count, not necessarily in final system cost or complexity.

Actionable Insights: For researchers and investors: focus on the subsystem technologies. The race isn't to build a full Quantum Illumination radar tomorrow; it's to advance the ancilla quantum memory (using platforms like rare-earth-doped crystals or superconducting circuits) and high-efficiency photon-number-resolving detectors. Partner with classical radar engineers—the ultimate system will likely be a hybrid. For defense and medical imaging applications, start with short-range, controlled-environment proofs-of-concept (e.g., biomedical imaging through scattering tissue) rather than long-range radar. The paper's legacy is a direction, not a product specification.

6. Technical Details & Formulas

The central mathematical comparison lies in the probability of error ($P_{error}$) for distinguishing the two hypotheses ($H_0$: object absent, $H_1$: object present). For $M$ trials:

Classical Coherent State: $P_{error}^{classical} \sim \exp[-M \, \eta N_S / (4b)]$ for $\eta \ll 1, b \gg 1$.
Quantum Illumination (Two-Mode Squeezed Vacuum): $P_{error}^{QI} \sim \exp[-M \, \eta N_S / b]$. The exponent is larger by a factor of $\sim 4$.

When using $N$ ebits of entanglement (e.g., $N$ signal-idler pairs), the Chernoff bound analysis shows the error probability scales as $P_{error}^{QI} \lesssim \exp[-C \, M \, \eta N_S 2^N / b]$ for a constant $C$, revealing the exponential-in-$N$ advantage.

The signal-idler state is often a two-mode squeezed vacuum (TMSV): $|\psi\rangle_{SI} = \sqrt{1-\lambda^2} \sum_{n=0}^{\infty} \lambda^n |n\rangle_S |n\rangle_I$, where $\lambda = \tanh(r)$, $r$ is the squeezing parameter, and the mean photon number per signal mode is $N_S = \sinh^2(r)$.

7. Experimental & Conceptual Results

Conceptual Diagram Description: A typical Quantum Illumination setup diagram would show: 1) An Entangled Photon Source (e.g., a nonlinear crystal pumped by a laser) generating signal (S) and idler (I) beams. 2) The Signal beam is directed towards a target region containing a potential object with low reflectivity $\eta$, immersed in a bright thermal bath with photon number $b$. 3) The Idler beam is delayed in a high-quality Quantum Memory. 4) The possibly reflected signal is combined with the retrieved idler at a Joint Measurement unit (e.g., a balanced beam splitter followed by photon coincidence counters). 5) A sharp peak in coincidences above the accidental background indicates the presence of the object.

Key Result: The theory shows that the signal-idler cross-correlation (coincidence count) for the quantum case remains detectable even when $\eta N_S \ll b$, whereas the auto-correlation of the signal (classical method) is buried in noise. This was experimentally verified in seminal table-top optics experiments (e.g., by Shapiro's group at MIT and later others) using pseudo-thermal noise, confirming the 3-6 dB advantage in correlation SNR despite complete entanglement destruction.

8. Analysis Framework & Conceptual Example

Framework: Quantum Hypothesis Testing for Channel Discrimination.

Problem: Discriminate between two quantum channels acting on the signal: $\Lambda_0$ (loss and noise, object absent) and $\Lambda_1$ (loss, noise, AND a weak reflectivity, object present).

Classical Strategy: Use a probe state $\rho_S$ that is separable from any ancilla. Measure the output state $\Lambda_{0/1}(\rho_S)$. The optimal measurement is a POVM on the signal alone. The discrimination power is limited by the trace distance between $\Lambda_0(\rho_S)$ and $\Lambda_1(\rho_S)$, which is very small when $\eta$ is small.

Quantum Illumination Strategy:

Probe: Use an entangled probe state $\rho_{SI}$ where system S is sent and I is kept.
Channel Action: The channel acts only on S: $\tilde{\rho}_{SI} = (\Lambda_{0/1} \otimes \mathcal{I})(\rho_{SI})$.
Measurement: Perform a joint POVM on the output $\tilde{\rho}_{SI}$. Even though $\tilde{\rho}_{SI}$ is separable, the optimal joint measurement on S and I can access correlations that a measurement on S alone cannot, leading to a larger trace distance and lower error probability.

Simplified Conceptual Case: Imagine sending one of two orthogonal states $|0\rangle$ or $|1\rangle$ classically. After the channel, they are nearly identical. With entanglement, you send $|0\rangle_S|0\rangle_I$ or $|1\rangle_S|1\rangle_I$. The channel destroys the signal's purity, but by comparing the return with the ancilla ($|0\rangle_I$ or $|1\rangle_I$), you can perform a correlation check that is more resilient to noise added to the signal.

9. Applications & Future Directions

Near-term Applications:

Short-Range Biomedical Imaging: Detecting tumors or blood vessels through highly scattering biological tissue, where light is severely attenuated and background autofluorescence is present.
Non-Destructive Testing (NDT): Inspecting composite materials or semiconductor wafers for subsurface defects in noisy industrial environments.
Secure Low-Probability-of-Intercept (LPI) Sensing: Military applications where detecting a stealth object is paramount, and the quantum protocol's low-brightness signal is harder for an adversary to detect or jam.

Future Research Directions:

Microwave Quantum Illumination: Translating the protocol to microwave frequencies for practical radar applications, leveraging advances in superconducting circuits and Josephson parametric amplifiers to generate and detect entanglement. This is a major focus of groups like those at MIT and the University of Chicago.
Hybrid Quantum-Classical Protocols: Integrating quantum illumination concepts with classical signal processing techniques (e.g., compressive sensing, machine learning) to further boost performance and relax hardware requirements.
Quantum Illumination with Quantum Networks: Using distributed entanglement across a network of sensors for superior multi-static radar or quantum-enhanced LIDAR mapping.
Overcoming the Memory Bottleneck: Developing long-lived, high-fidelity quantum memories compatible with telecom wavelengths (for free-space optics) or microwave frequencies.

10. References

Lloyd, S. (2008). Quantum Illumination. arXiv:0803.2022v2 [quant-ph].
Tan, S.-H., et al. (2008). Quantum Illumination with Gaussian States. Physical Review Letters, 101(25), 253601. (The follow-up work providing a full Gaussian state treatment).
Shapiro, J. H., & Lloyd, S. (2009). Quantum Illumination versus coherent-state target detection. New Journal of Physics, 11(6), 063045.
Barzanjeh, S., et al. (2020). Microwave Quantum Illumination. Physical Review Letters, 114(8), 080503. (A key experimental demonstration in the microwave regime).
Helstrom, C. W. (1976). Quantum Detection and Estimation Theory. Academic Press. (The foundational text on the theoretical limits used in the analysis).
Lopaeva, E. D., et al. (2013). Experimental realization of quantum illumination. Physical Review Letters, 110(15), 153603. (Early optical experimental verification).
Zhang, Z., et al. (2015). Entanglement's benefit survives an entanglement-breaking channel. Physical Review Letters, 114(11), 110506. (Related work on entanglement-assisted communication).
Zhuang, Q., Zhang, Z., & Shapiro, J. H. (2017). Optimum mixed-state discrimination for noisy entanglement-enhanced sensing. Physical Review Letters, 118(4), 040801.
